How to Install our Hot Tub Insulation Kit
This step by step guide details how to Insulate you Hot Tub – So less energy is required to maintain the desired temperature!
We have created a Hot Tub Insulation Kit, designed to save those who have purchased an uninsulated hot tub money.
Multifoil-Insulation are the leading UK & European distributor of Multifoil Insulation products. We offer fast next working day delivery to the UK Mainland (Order before 2pm)
view_day Insulation Materials

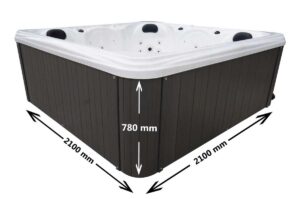

Work out How Much Insulation You Need
Ask someone to hold the tape in place in one of the four corners - use this as your start point. If you Hot Tub is circular, simply measure the circumference of your Hot Tub. TIP: If you have a fabric tape measure, this would make this step easier for those of you who have a circular / not square Hot Tubs. If you have a square hot tub, you can simply measure one side and multiply by 4. If you have a rectangular Hot Tub, measure the shorter side and multiply by 2 then measure the longer side and multiply by 2. Add these 2 figures together. Note this measurement down, to prepare for cutting shortly.
Check the Height of your Hot Tub
It is worth checking that the height of your hot tub does not exceed 1.2m - if it does, Contact Us. The height of even the largest hot tubs tends to be no more than 100cm (1m). It is likely that your height will range from anything between 70cm - 100cm.

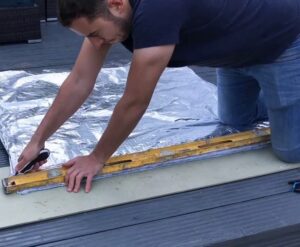

Cut the Multifoil to the Correct Length
Look at the measurement you noted down, relating to the circumference of your hot tub, in Step 1. Add 70mm to this figure. Roll the insulation out and then Cut. TIP: Pull the Insulation tort, prior to cutting with the Multifoil Insulation Scissors. This will compress the layers and make it much easier. If preferred, you can use a cutting knife and again, just ensure that the insulation is compressed beforehand.

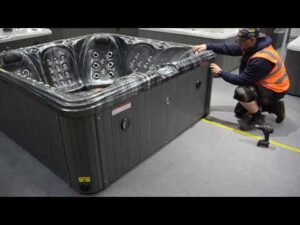

Remove the Side Panels of the Hot Tub
You are likely to need a screwdriver for this. There will be some minor variances, depending on the Hot Tub you have but in general they are all relatively similar. They are likely to have screws on / around each of the corners on the panels. If you can remove the panels, without removing the corner panels, this is ideal. Do not remove the corner panels unless you have to, to release the main side panels.

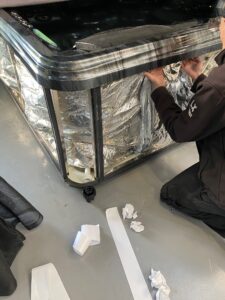

Start Installing The Multifoil
Now you can begin installing the Multifoil Insulation. Start by tucking the multifoil behind the corner panel / strip - this will help to hold the insulation in place whilst you get started. As per the image below, tuck the material in at the top and at the bottom - by tucking this in, you are minimising the heat escaping and cold air entering. Keep insulating around the hot tub.
Cut where Necessary
Although for most of our applications, we advise to keep a continuous insulation layer - we understand for this application there are some elements, such as the control panel and pipe work, that you may need to leave accessible and therefore exposed. Simply, cut around these with the scissors provided. Be careful not to cut anything other than the Multifoil Insulation.
Once you have insulated around the whole of the hot tub (excluding the areas cut) then you should have a little excess insulation, which you can overlap slightly - in preparation for taping.

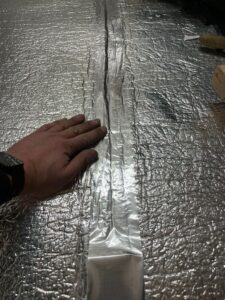

Tape Around Joints and Edges
Start by taping where you have just overlapped the insulation. You can then use that Thermaseal Foil Joining Tape to seal around any edges where air may pass. The aim is to keep this material a continuous layer where possible, so tape any area where you warm air may escape and cold air may enter.
Reassemble Your Hot Tub
Reattach your panels back on and ensure screwed securely as they were previously.

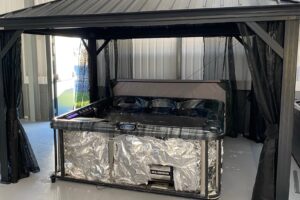

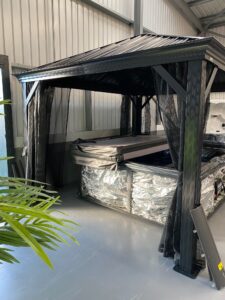

Relax and Enjoy!
Enjoy your newly Insulated Hot Tub - Stay in for longer, guilt free whilst using a lot less energy than you would have beforehand!
