SPC-Lux Flooring Installation Guide

Difficulty: Easy • 8 Steps

We have created an in depth guide to help you throught the installation process for SPC-Lux Flooring.

Each step is broken down into a few simple steps, you can also follow a How To Video that will assist you with install and show you each step in more detail.

If you have any questions or require any assistance with your installation get in touch with a member of staff. You can fill in an enquiry form HERE or call us on 0333 577 0288.

Install your SPC-Lux Insulated Flooring by following our Step by Step how to guide.

We have made this clear to ensure that you can easily install the flooring, should you wish too.

You can use this in conjunction with our video and website details.

Insulation Materials

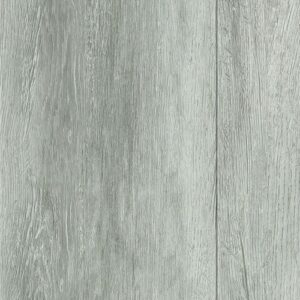

SPC-Lux Flooring Samples

Tools

SPC-Lux Flooring Fitting Kit

Method Steps

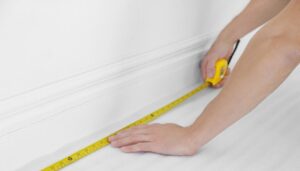

Measure the area of the room

Once EcoTec FloorFoam is installed use a tape measure to measure the the total area of he room, You should measure the width and length.

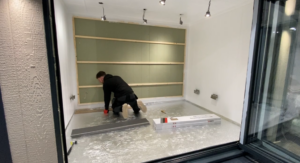

Where to start installing SPC-Lux Flooring

You should begin laying SPC-Lux Flooring in theback corner of the room. We recommend starting will a fullboard and cut the final piece of the run down to size. This will create a scattered pattern.

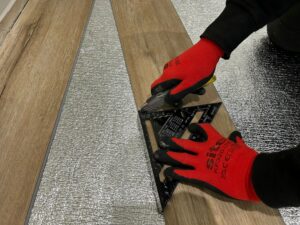

How to cut SPC-Lux Flooring

We have provided a Set Square and Knife with the SPC-Lux Flooring Kit to ensure you create a perfect straight edge. Score a straight line with the Knife and Set Square then you can simply snap the board. Installation Tip: Do not cut a board directly on top of a board that has already been laid, you can risk scraping it. You can cut it in another area of the room or use an unused board as a base to work on.
What is the UNILINC Locking System?

SPC-Lux Flooring boards have been designed with the UNILINC Locking System that simply click together. You can feel the boards click into place this makes installation much easier.

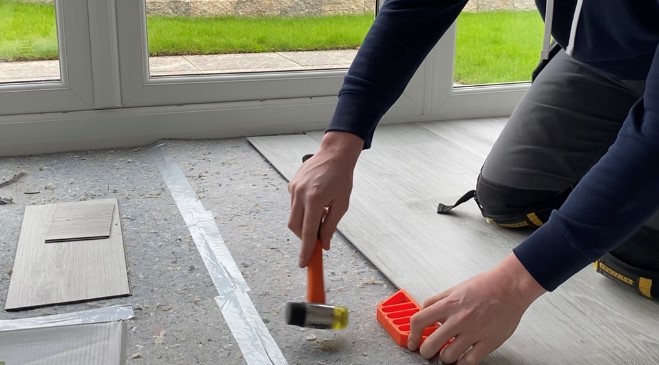

Mallet and Tapping Block

Your kit also includea a Mallet and Tapping Block to ensure each board us secure. The Maller is rubber and will not damage the SPC-Lux Flooring

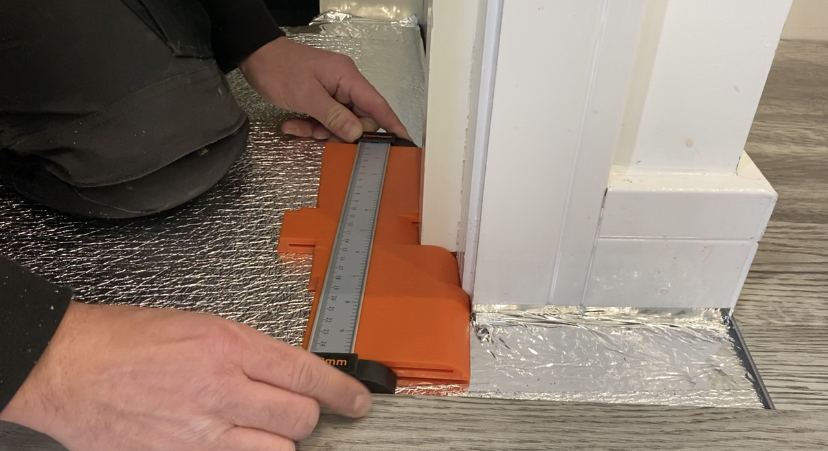

How to fit SPC-Lux around corners

There is a Profile Gauge in the kit, this replicates shapes of doorways and other tricky shapes. This will allow you to replicate the same shape on the SPC-Lux Flooring. You simply push the Gauge against the shape you're wanting to recreate and mark the shape on the flooring board. This shape can be cut using a jigsaw.
Pull Bar

When you get to the edge of the room you can use the Pull Bar to ensure the flooring is secure and the the UNILINC System is in place. You can go all around the perimeter of the room using the Pull Bar in conjunction with the Mallet.

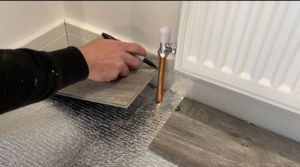

How to fit SPC-Lux around radiator pipes

If you're fitting SPC-Lux Flooring around radiator pipes use the Profile Gauge and push it against the radiator until halfway and draw this shape on the end of a board. Do the same with the board placed on the other side of the radiator pipe. Use the jigsaw to cut the shape out and slot each piece of the flooring around the pipe and it should slot into place. You can finish this off with pipe covers.
